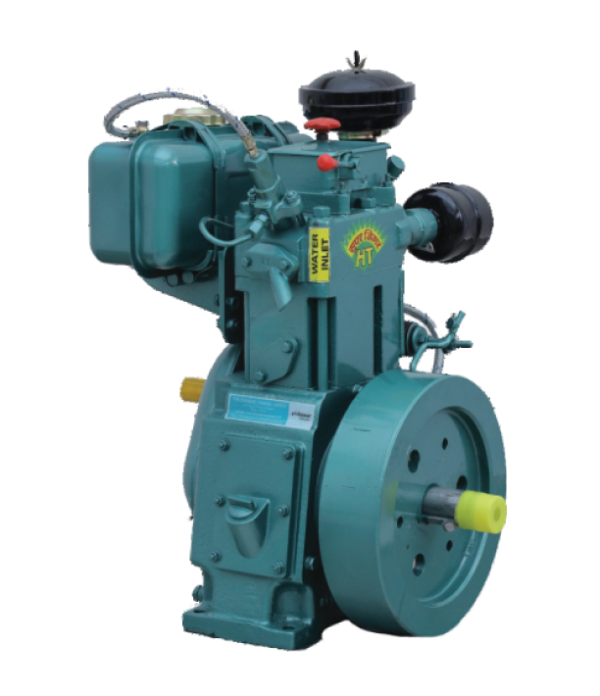

XL50-LW
WATER-COOLED ENGINE
Features :
• Power- 5 HP
• Superior Performance
• Light Weight
• Suitable for Multi-Application
| Technical Specifications | |||
| Model | Units | XL50-LW | |
| No of Cylinders | 1 | ||
| Bore X Stroke | mm | 87.5 X 80 | |
| Cubic Capacity | Ltr. | 0.481 | |
| Compression Ratio | 17:01 | ||
| Rated Output | kW/HP | 3.7/5 | |
| Rated Speed | rpm | 1500 | |
| Crankshaft Center Height | mm | 203 | |
| Specific Fuel Consumption | (Gm/Hp-Hr) | 185+/-5% | |
| Lube Oil Sump Capacity | Ltr | 3.3 at higher level mark in dipstick | |
| Lube Oil Consumption | % | 0.5% of SFC Max. | |
| Fuel Tank Capacity | Ltr | 5 | |
| Dimension LXWXH | mm | 450 X 420 X 636 | |
| Engine Weight | Kg | 87 | |
| Flywheel Rotation | Clockwise | ||
| Power Take-off | Flywheel end | ||
| Starting | Hand Start | ||
| Governing | CLASS "B1” | ||
| Type of Fuel Injection | Direct Injection | ||
| Overloading Capacity of Engine | 10% of the Rated Output | ||
