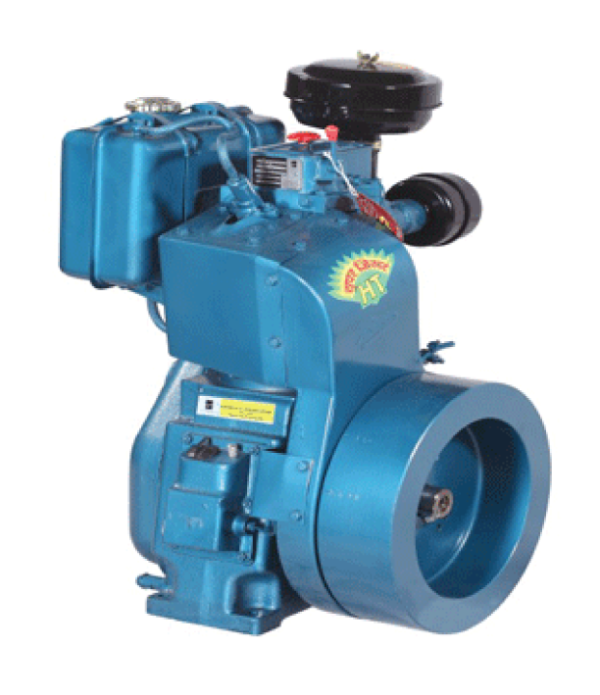

DAF8, DAF10
AIR-COOLED ENGINE
Features :
• Power- 8 to 10 HP
• Robust Construction & Design
• Superior Performance
• Air-cooled Verticle Cylinder
| Technical Specifications | |||
| Model | Units | DAF8 | DAF10 |
| No of Cylinders | 1 | 1 | |
| Bore X Stroke | mm | 95/110 | 102/116 |
| Cubic Capacity | Ltr. | 0.78 | 0.94 |
| Compression Ratio | 17.5:1 | 17.5:1 | |
| Rated Output | kW/HP | 5.9/8 | 7.4/10 |
| Rated Speed | rpm | 1500 | 1500 |
| Crankshaft Center Height | mm | 203 | 203 |
| Specific Fuel Consumption | (Gm/Hp-Hr) | 185+/-5% | 185+/-5% |
| Lube 0iI Sump Capacity | Ltr | 3.7 at higher level mark on dipstick | |
| Lube 0iI Consumption | % | 0.8% of SFC Max. | |
| Fuel Tank Capacity | Ltr | 11.5 | 11.5 |
| Dimension LXWXH | mm | 531 X 546 X 878 | |
| Engine Weight | Kg | 193 | 194 |
| Flywheel Rotation | Clockwise/Anti-Clockwise | ||
| Power Take-off | Flywheel end | ||
| Starting | Hand Start | ||
| Governing | CLASS “A2/BI" | ||
| Type of Fuel Injection | Direct Injection | ||
| Overloading Capacity of Engine | 10% of the Rated Output | ||
